Two-way ball zone valve - Caleffi

Two-way ball zone valve - Caleffi

Caleffi: high quality!

If you are looking for high quality and functional products designed down to the smallest detail, choose Caleffi! Caleffi develops and produces components for heating, air conditioning and sanitary systems, heat metering systems and specific components for renewable energy systems. The basis on which the company's success is based is total quality which depends on the quality of the individual operations that make up the entire production process. What are you waiting for? Choose Caleffi: you can find all the products on Abitare.com

Caleffi servomotor for mixing valves

• Manufacturer: Caleffi SPA

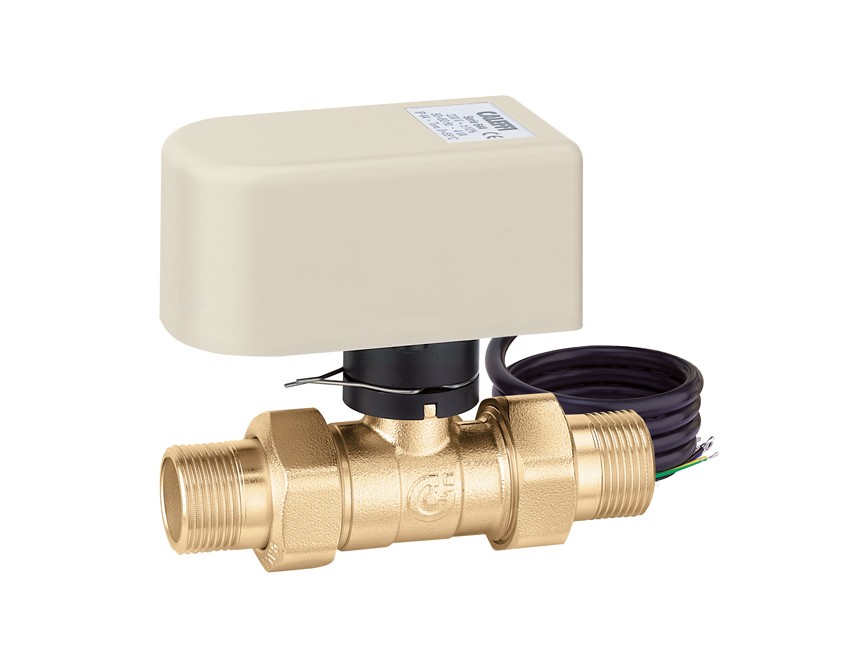

• Type: Two-way ball zone valve
• Motorized valve
• Pmax operating: 10 bar
• Pmax: 10 bar
• Temperature range: -5-110°C
• Complete with motor with 3-contact control
• With auxiliary microswitch
• Power supply: 230 V (AC) or 24 V (AC)
• Absorption: 4 VA
• Auxiliary micro contact rating: 0.8 A (230 V)
• Ambient temperature range: 0-55°C
• Degree of protection: IP 44 (vertical control rod), IP 40 (horizontal control rod)
• Maneuvering time: 40 s (90° rotation)
• Power cable length: 100 cm
• Weight: 1kg

PRODUCT CODE: 644252
