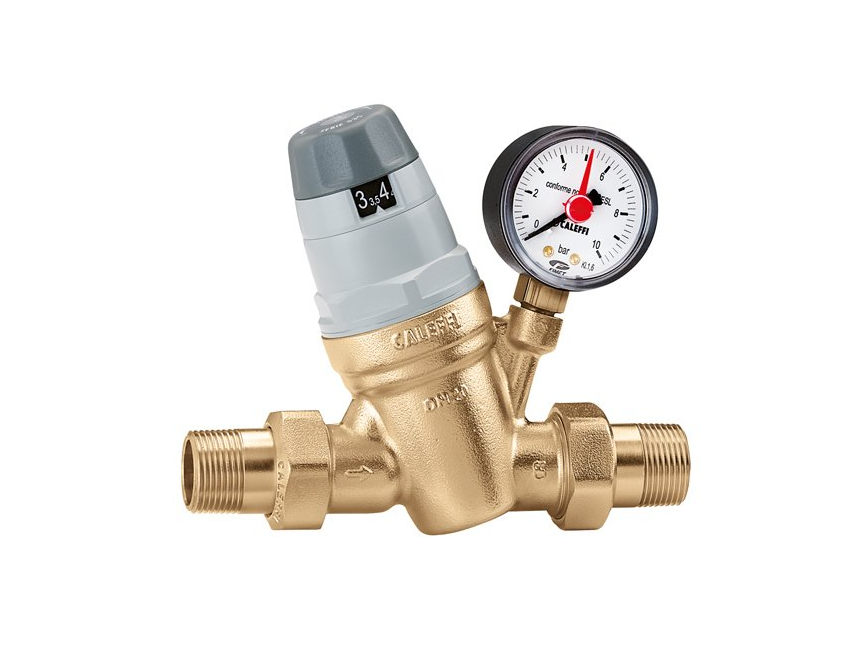

Caleffi pressure reducer

Pressure reducer with removable monobloc cartridge, anti-dezincification alloy body with pre-regulation indicator.

Caleffi SPA

In Italy we are recognized as a leader in the production of components for heating and air conditioning systems for civil and industrial users, and in the supply of cutting-edge system solutions. We want to continue to be a point of reference on the national territory. We foresee the intensification of Research and Development programs to meet the real needs of the market, remembering that the growth of technical and technological skills remains one of the key factors to always be "contemporary".

Technical characteristics

• Manufacturer: Caleffi SPA
• Male union connections
• Max upstream pressure: 25 bar
• Downstream calibration pressure: from 1 to 6 bar
• Operating Tmax: 40 °C
• Certified according to EN 1567
• With pressure gauge 0–10 bar
• Connection: 3/4"

PRODUCT CODE: 535051
